PRODUCT

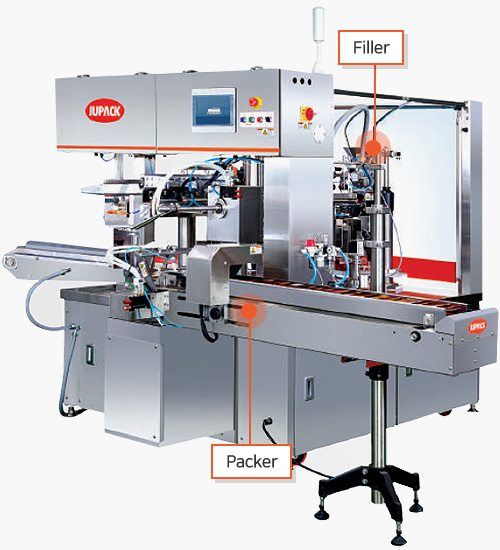

Side-gusset pouch packer For side gusset pouch

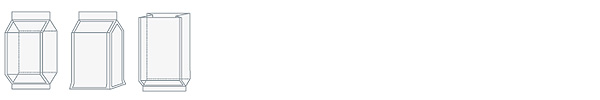

Available pouch type

Model & Specification

기계모델 상세내용
Model JG-8S0815 JG-8S1520
Speed
(Pouches / min)		 20 ~ 30 20 ~ 30
Production speed depends on product, pouch type / size and filling volume
Pouch
size range
(mm)		 Width 80 ~ 150 150 ~ 200
Length 100 ~ 400 100 ~ 400

Advantage of Jupack machine

  • 01

    Mechanical CAM driven – Exact working performance>

  • 02

    5 minute format changeover

  • 03

    Smply & Sanitary design – Ease cleaning & maintenance / assembledisassemble design

  • 04

    Recipes record and recall function – Easy format changeable.

  • 05

    N2 gas flushing , Air suction, Dust removing and other accessories are available.

  • 06

    Electrical cabinet located above filling and cleaning zone

  • 07

    Special designed pouch feeding conveyor for stacking many pouches and no jams of pouches

Products

  • 01

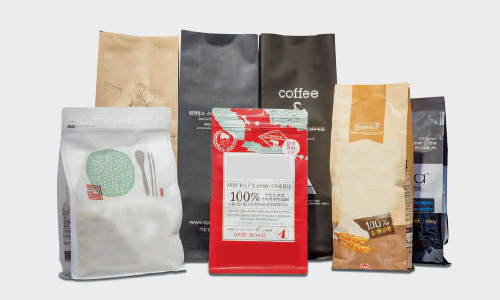

    Side gusset pouches for Coffee beans, Ground coffee, Wheat flour, Nuts, Detergent powder Ground meals, Seasoning powder, other powders

Application Video
