PRODUCT

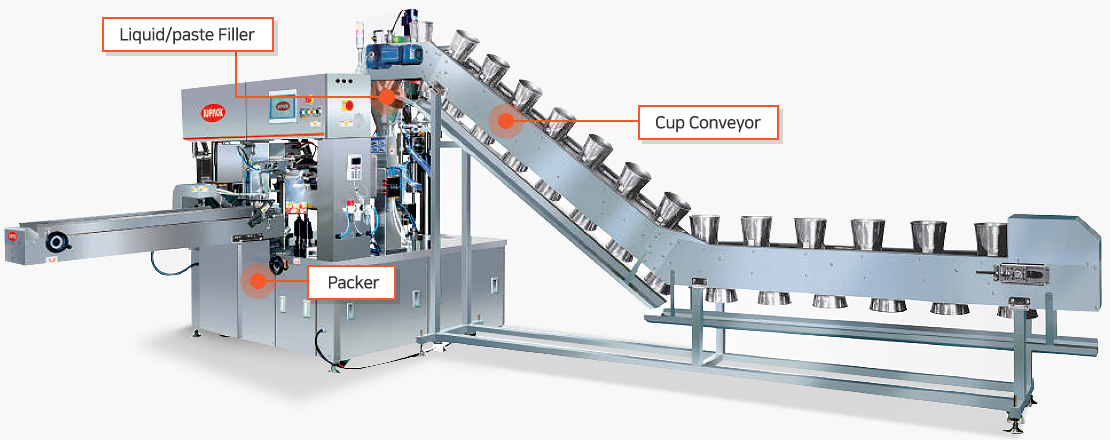

Liquid-Paste packer For Liquid, Paste, Gel, Lump product

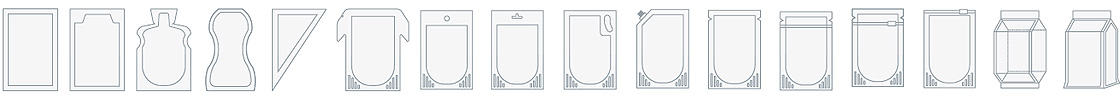

Available pouch type

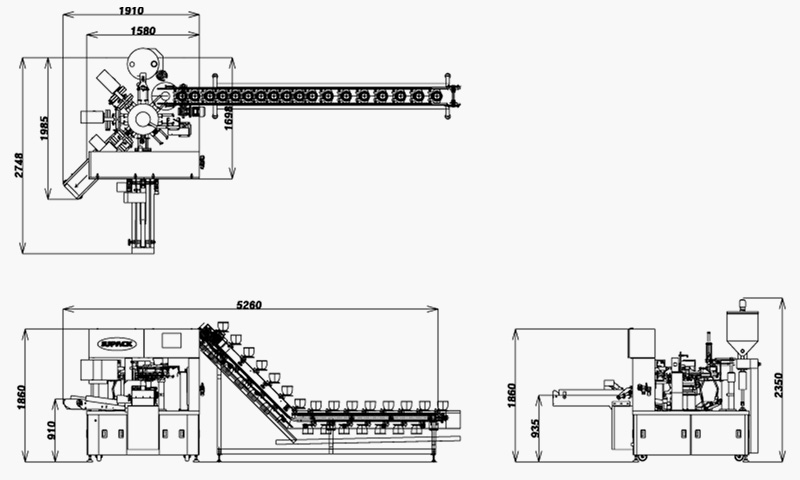

Model & Specification

기계모델 상세내용
Model JR-6S2540 JR-7D1024 JR-8S1024 JR-8S1530 JR-8D0915 JR-8D1024 JR-10S1024 JG-8S0815 JG-8S1520
Speed
(Pouches / min)		 10 ~ 30 30 ~ 80 30 ~ 50 30 ~ 50 60 ~ 100 60 ~ 100 30 ~ 50 20 ~ 30 20 ~ 30
Production speed depends on product, pouch type / size and filling volume
Pouch
size range
(mm)		 Width 250 ~ 400 100 ~ 240 100 ~ 240 150 ~ 300 100 ~ 150 100 ~ 240 100 ~ 240 80 ~ 150 150 ~ 200
Length 250 ~ 470 100 ~ 400 100 ~ 400 130 ~ 470 100 ~ 400 100 ~ 400 100 ~ 400 100 ~ 400 100 ~ 400

Advantage of Jupack machine

  • 01

    Synchro piston filler – Optimized filling performance as machine speed

  • 02

    Simply & Sanitary design – Ease cleaning & maintenance / assemble-disassemble design

  • 03

    Flat, Stand-up, Zipper, Corner Spout pouch available.>

  • 04

    Recipes record and recall function – Easy format changeable.

  • 05

    Simply & Sanitary design – Ease cleaning & maintenance / assemble-disassemble design

  • 06

    Electrical cabinet located above filling and cleaning zone

  • 07

    Easy pouch size change via a touch screen or a handle within 5 minutes

  • 08

    Special designed pouch feeding conveyor for stacking many pouches and no jams of pouches

  • 09

    Captured CAM driven train, No spring

  • 10

    Sanitary cylindrical pouch grippers, no exposed spring

  • 11

    Individual four grippers design, no center gripper which has much errors

  • 12

    Hot-fill , Steam flushing, CIP and other accessries are available.

  • 13

    Wash-down design(IP65)

Products

  • 01

    Sauces, Juices, Soup, Jelly, Ketchup, Jam, Soy-sauce, Edible oil, Fruit extract

  • 02

    Liquid detergent, Shampoo, Rinse, Liquid soap, Softner
