PRODUCT

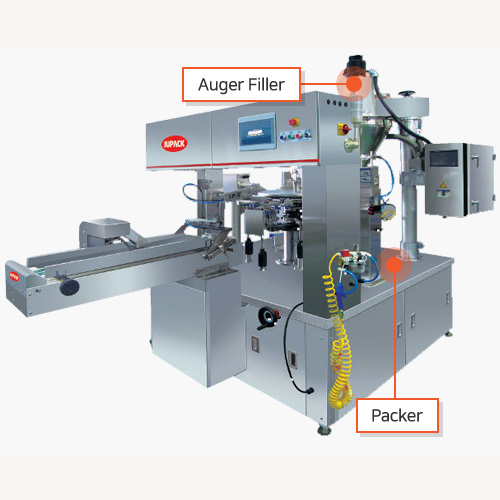

Automatic Pouch Packer For Powder, Particle product

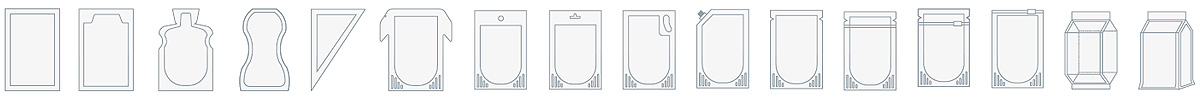

Available pouch type

Model & Specification

기계모델 상세내용
Model JR-6S2540 JR-7D1024 JR-8S1024 JR-8S1530 JR-8D0915 JR-8D1024 JR-10S1024 JG-8S0815 JG-8S1520
Speed
(Pouches / min)		 10 ~ 30 30 ~ 80 30 ~ 50 30 ~ 50 60 ~ 100 60 ~ 100 30 ~ 50 20 ~ 30 20 ~ 30
Production speed depends on product, pouch type / size and filling volume
Pouch
size range
(mm)		 Width 250 ~ 400 100 ~ 240 100 ~ 240 150 ~ 300 100 ~ 150 100 ~ 240 100 ~ 240 80 ~ 150 150 ~ 200
Length 250 ~ 470 100 ~ 400 100 ~ 400 130 ~ 470 100 ~ 400 100 ~ 400 100 ~ 400 100 ~ 400 100 ~ 400

Advantage of Jupack machine

  • 01

    High speed & accuracy Auger filler interlocked

  • 02

    Simply & Sanitary design – Ease cleaning & maintenance / assemble-disassemble design

  • 03

    Individual four grippers design, no center gripper which has much errors

  • 04

    Flat pouch,Shaped pouch Stand-up pouch, Zipper pouch, Corner Spout pouch available.

  • 05

    Recipes record and recall function – Easy format changeable.

  • 06

    N2 gas flushing, Air suction, Dust removing and other accessories are available.

  • 07

    Simplex / Duplex model available

  • 08

    Wash-down design(IP65)

  • 09

    Electrical cabinet located above filling and cleaning zone

  • 10

    Easy pouch size change via a touch screen or a handle within 5 minutes

  • 11

    Special designed pouch feeding conveyor for stacking many pouches and no jams of pouches

  • 12

    Captured CAM driven train, No spring

  • 13

    Sanitary cylindrical pouch grippers, no exposed spring

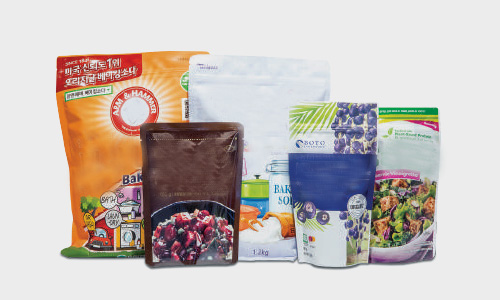

Products

  • 01

    Wheat flour, Detergent Powder, Ground meals, Seasoning powders, Ground coffee, other powders

Application Video
