PRODUCT

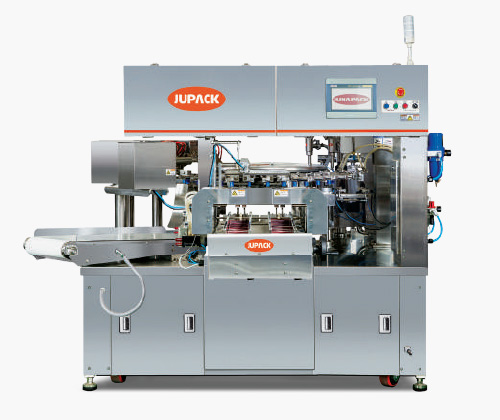

Duplex model Two pouches packaging per one time

Available pouch type

Model & Specification

기계모델 상세내용
Model JR-7D1024 JR-8D0915 JR-8D1024
Speed
(Pouches / min)		 30 ~ 80 60 ~ 100 60 ~ 100
Production speed depends on product, pouch type / size and filling volume
Pouch
size range
(mm)		 Width 100 ~ 240 100 ~ 150 100 ~ 240
Length 100 ~ 400 100 ~ 400 100 ~ 400

Advantage of Jupack machine

  • 01

    Electrical cabinet located above filling and cleaning zone

  • 02

    Easy pouch size change via a touch screen or a handle within 5 minutes

  • 03

    Special designed pouch feeding conveyor for stacking many pouches and no jams of pouches

  • 04

    Captured CAM driven train, No spring

  • 05

    Sanitary cylindrical pouch grippers, no exposed spring

  • 06

    Individual four grippers design, no center gripper which has much errors

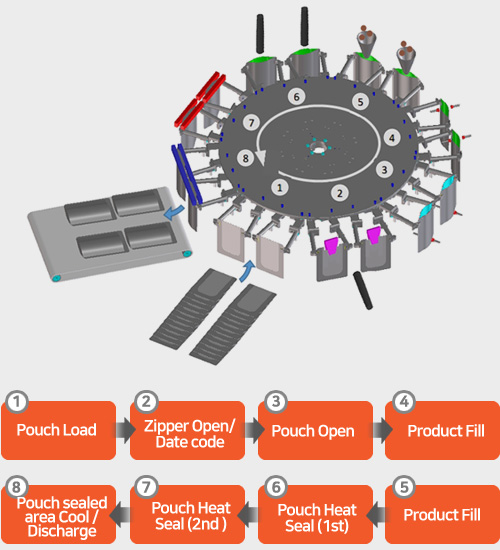

Packaging Process

Application Video
